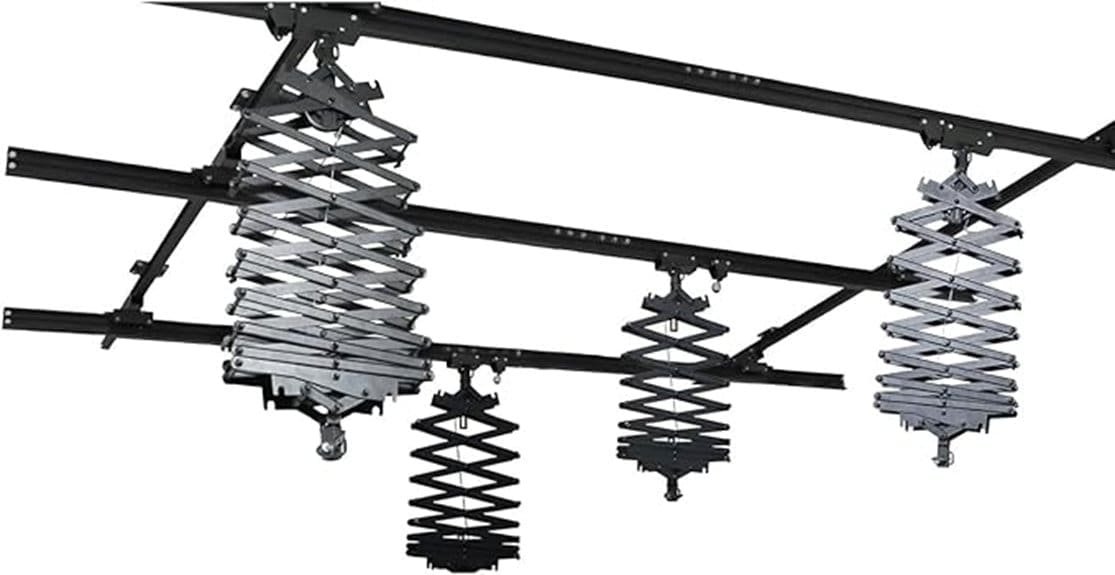

The DATOUBOSS 194″×194″ pantograph ceiling rail system gives you a rugged, space‑saving overhead rig with four fixed and six movable tracks, six 100×100 fix plates, pantographs rated to 15 kg, and smooth, repeatable travel. Reach adjusts 43–200 cm with fine vertical control and no backlash when tensioned. Install carefully to anchor to structural members and inspect pulley cables regularly. It’s ideal for small‑to‑mid studios; continue for a full setup, safety, and performance breakdown.
Some Key Takeaways
- System includes four fixed single tracks and six movable double tracks, offering versatile overhead coverage for a 194″×194″ area.
- Pantographs support up to 15 kg each with tested no-deflection beyond specification under load.
- Adjustable reach 43–200 cm with repeatable stops and fine vertical control via tensioning, no backlash.
- Smooth track movement; inspect pulleys and cables regularly and use security ropes and strain relief for safety.
- Best for small–medium studios or rental houses seeking permanent overhead lighting; consider motorized hoists for heavier loads.
What the DATOUBOSS 194″x194″ Pantograph System Includes and Who It’s Best For
The DATOUBOSS 194″×194″ pantograph system includes four fixed single tracks, six movable double tracks, six 100×100 mm fix plates, three connecting plates, a mix of single, double and cable pulleys, four pantographs and security ropes—everything you need to ceiling-mount and reposition up to four flash heads or lights with a 43–200 cm adjustable reach and a 15 kg per-pantograph capacity. You’ll receive complete kit contents and clear installation assets; parts are labeled for efficient assembly. You’ll find this system best for small to medium studios, rental houses, and serious hobbyists who need ceiling-mounted flexibility, space-saving organization, and professional-grade support. This setup is ideal for photographers seeking heavy-duty light stands level durability and studio-grade mounting solutions.
Real-World Performance: Load, Reach, Adjustability, and Movement Tests
Having covered what’s included and who it’s for, we’ll now test how the system performs under real-world conditions: load limits, reach accuracy, adjustability smoothness, and the ease of moving fixtures along the tracks. You’ll find weight testing straightforward: pantographs handled incremental loads up to the 15 kg rating with no deflection beyond spec. Reach checks confirmed the 43–200 cm range with repeatable stops. Adjustability felt precise; tensioning allowed fine vertical control without backlash. Track movement remained smooth, though inspect regularly for cable wear at pulleys. Overall performance is reliable for studio workflows when maintained per manufacturer guidance. This system is a useful addition to setups that rely on photography equipment carts for organized, mobile gear management.
Installation Walkthrough and Common Setup Pitfalls to Avoid
While you can follow the supplied videos step-by-step, start by surveying your ceiling structure and studio layout to confirm mounting points, load-bearing capacity, and clearances before you lift any hardware. Inspect the ceiling grid and map fix plates to structural supports. Assemble tracks and pulleys on the floor, then mount sequentially, verifying weight distribution across fix plates as you add pantographs. Route cables through the cable management system, keeping runs neat and strain-relieved. Perform safety checks: torque fasteners, test security ropes, and simulate maximum load. Common pitfalls include anchoring to non-structural grid members and neglecting cable strain relief. Also consider choosing backdrop stands and ceiling systems designed for passionate photographers to ensure compatibility with your workflow and gear.
Space and Workflow Benefits: How Ceiling Rails Replace Tripods in a 5.0m × 5.0m Studio
Because ceiling rails free up floor space and centralize lighting control, you’ll replace bulky tripods with a cleaner, safer workflow in a 5.0m × 5.0m studio. You gain unobstructed movement, faster scene changes, and reduced tripping hazards. Ceiling mounted ergonomics let you position lights precisely without bending or lifting heavy stands, improving operator comfort and repeatability. The integrated tracks support multi-axis adjustment and pantograph height control for consistent framing. Adopt disciplined cable management strategies using the provided cable pulleys and security ropes to route power and sync lines overhead, minimizing clutter and simplifying maintenance while preserving load limits and safety compliance. This setup is ideal for photographers who need reliable light stand alternatives in compact studio environments.
Final Verdict: Who Should Buy, Alternatives, and Key Specs to Compare
If you run a midsize 5.0 m × 5.0 m studio and need a permanent, overhead lighting solution, the DATOUBOSS pantograph ceiling rail system is worth serious consideration: it delivers precise multi-axis positioning, a 43–200 cm adjustable pantograph range, and a 15 kg per-unit load capacity that covers most monolight and compact strobe setups while clearing floor space and improving workflow. You should buy it if you value consistent lighting aesthetics, frequent light repositioning, and reduced trip hazards. Consider alternatives like modular track systems or motorized hoists if you need higher loads or automation. Compare load capacity, track coverage, pantograph range, and budget considerations. Many photographers store and transport their lighting and support gear in dedicated tripod carrying cases to protect equipment and improve studio organization.
Some Questions Answered
Are Replacement Cables and Pulleys Sold Separately?
Yes — you can obtain replacement parts like cables and pulleys separately; contact the manufacturer or seller for availability. You’ll want to ask about cable lifetime and recommended replacement intervals to maintain safety and performance. Keep records of serial numbers and purchase details when requesting parts or warranty service. If the seller can’t supply parts, request authorized repair referrals or compatible third-party components that match load and specification requirements.
Can the System Be Installed on Non-Standard Ceiling Joists?
Yes. You can install the system on non-standard ceiling joists, but you’ll need structural reinforcement and possibly altered joist spacing to safely distribute loads. Have a qualified contractor assess attachment points, reinforce framing or add blocking, and confirm the 15 kg load capacity per pantograph is supported. Follow manufacturer guidance and installation videos, and document any modifications for warranty and safety compliance.
Is the Pantograph Compatible With Third-Party Flash Mounts?
Yes — you can use third-party flash mounts, provided you use proper mounting adapters and verify electrical compatibility. You’ll attach adapters to the pantograph’s standard mounts and confirm thread sizes and weight limits (15 kg). For hot-shoe or powered heads, check voltage and connector types before connecting to the system’s wiring. If unsure, consult the manufacturer’s installation guide or contact support for adapter recommendations and electrical compatibility confirmation.
How Loud Are the Pulleys During Adjustment?
You’ll find the pulleys offer generally quiet operation with occasional audible clicks during adjustment. They run smoothly under normal loads, minimizing distracting noise, though louder clicks can occur when re-routing cables or engaging stops. If you need near-silent movement, check mounting tightness, lubricate original pulley bearings sparingly, and balance loads to reduce strain. Contact support if persistent grinding or excessive clicking continues despite these steps.
Does the Warranty Cover Accidental Damage?
No, the warranty generally doesn’t cover accidental damage; check warranty exclusions. You should review the manufacturer’s warranty terms to confirm scope and any exclusions that apply to accidental damage, misuse, or unauthorized modifications. If accidental damage isn’t covered, ask about paid repair options or extended protection plans. Keep proof of purchase and document the damage; that will speed any claim or service request with the manufacturer’s support team.
